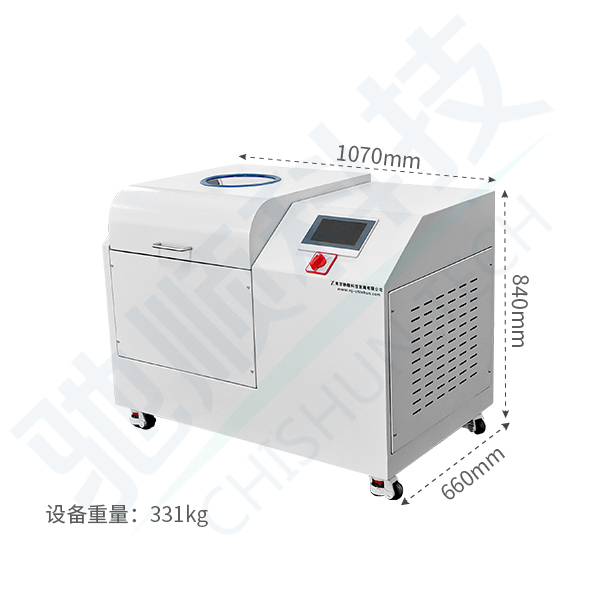

QM-2SP20 Planetary Ball Mill is an essential dev ice for mixing, fine grinding, sample preparation, nano-materials dispersion, new product development and small batch production of high-tech materials. With small size, full-feature, high efficiency and low noise, this product is an ideal instrument for scientific research institutions, higher institutes and corporate research laboratories to obtain the micro-particle samples (four samples can be obtained in one experiment). If equipped with vacuum ball milling cans, it can grind the samples under vacuum situation. QM series planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments.
Working Principle
A turntable is equipped with four milling cans. When the turntable rotates, the milling cans revolve both around the wheel axis and on their own axis, like planetary movement. Balls and materials in the cans collide and rub against each other during the high-speed movement so as to achieve the purpose of crushing, grinding, mixing and dispersing samples. This instrument can grind and mix samples of different sizes or materials during dry and wet conditions. The smallest particle discharged is 0.1um (namely1×10mm-4).
Specifications
|
Applications |
Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc. |
|
Applicable samples |
Soft, hard, brittle, fibrous, dry or wet |
|
Max. feed volume |
2/3 of the of the grinding jar |
|
Vacuum grinding |
optional |
|
Feed size |
soil≤10mm other≤3mm |
|
Final fineness |
0.1μm |
|
Alternate timing |
1-9999min |
|
Rotation |
280rpm |
|
Grinding jar |
4000ml、5000ml |
|
Vacuum jar |
4000ml |
|
Certificate |
UL、CE |
|
Power |
380V 5.5kw 50~60Hz |
|
Packaging Details |
117*80*103cm 480KG |
|
Data storage |
20 sets processes |
|
Data monitoring |
Real time monitoring of operational status, supporting fault alarms |
|
Programmable operation |
6 sets operation steps supporting edit/delete |
|
Control mode |
7" HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation) |
|
Jar materials |
Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide，etc. |
|
Competitive Advantage |
1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance |
