BM04 desktop planetary ball mill is a necessary device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials. The product has the advantages of small size, full function, high efficiency and low noise. it is an ideal equipment for scientific research institutions, colleges and universities and enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time in each experiment). The sample can be ground in vacuum. The products are widely used in geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical, light industry, medicine, beauty, environmental protection and other departments.

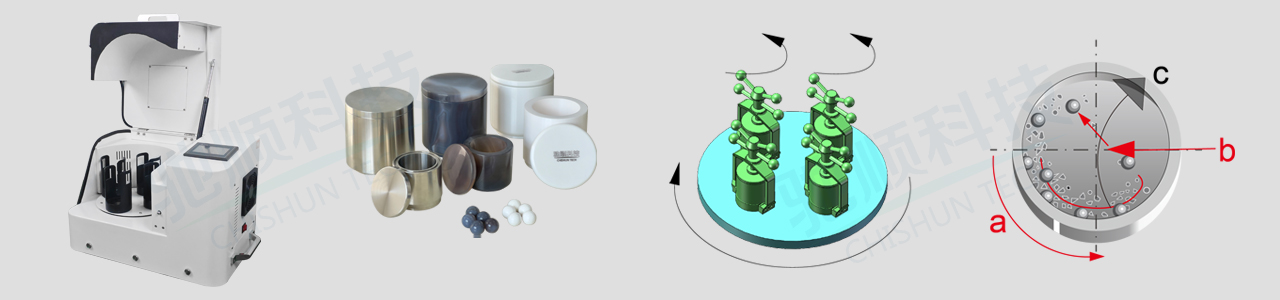

BM04 tabletop planetary ball mill is equipped with four ball grinding tanks on the same turntable. When the turntable rotates, the ball grinding tank rotates around the turntable shaft for planetary motion. The grinding ball in the ball mill tank grinds and mixes the sample in high-speed motion. The product can be ground by dry and wet methods and mixed with products with different particle sizes and materials, and the minimum particle size of the grinding product can be up to 0.1micron (i.e. 1.0X10mm4).
Specifications
|
Applications |
Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc. |
|
Applicable samples |
Soft, hard, brittle, fibrous, dry or wet |
|
Max. feed volume |
2/3 of the of the grinding jar |
|
Vacuum grinding |
optional |
|
Feed size |
soil≤10mm other≤3mm |
|
Final fineness |
0.1μm |
|
Alternate timing |
1-9999min |
|
Rotation |
900rpm |
|
Grinding jar |
50ml、100ml |
|
Vacuum jar |
50ml |
|
Certificate |
UL、CE |
|
Power |
220V 0.75kw 50~60Hz |
|
Packaging Details |
57*38*38cm 80KG |
|
Data storage |
Yes |
|
Data monitoring |
Real time monitoring of operational status, supporting fault alarms |
|
Programmable operation |
5 sets operation steps supporting edit/delete |
|
Control mode |
HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation) |
|
Jar materials |
Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide，etc. |
|
Competitive Advantage |
1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance |
