Description:

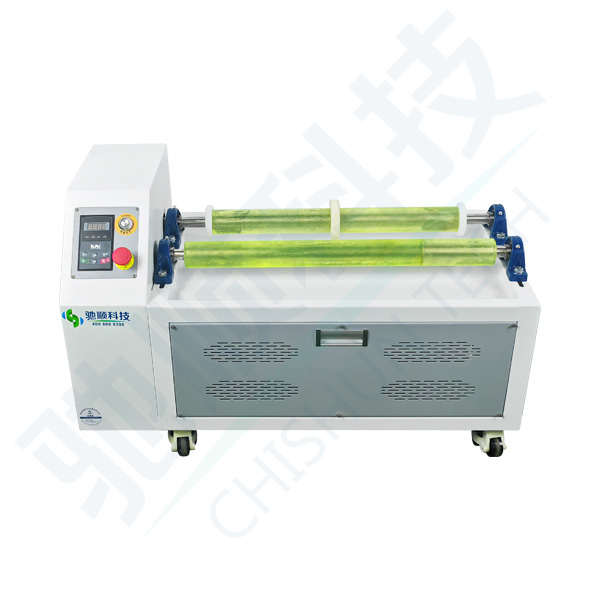

The PM5-2 roller ball mill  is mainly designed for crushing, grinding, dispersing, emulsifying metal, non-metal, organic, herbal and other powders. It is suitable for laboratory research and enterprise production use. Its working principle is to use abrasive and sample to roll at high speed in the grinding cylinder, generating strong shear, impact, and compaction on the material to achieve the purpose of crushing, grinding, dispersing, and emulsifying the material.

Advantage:

Nice appearance in line with the ergonomics department

Small size, easy operation, fine grinding particle size

Multiple material specifications for ball milling jars to choose from

Specifications:

Grinding cylinder volume: 5L

Number of grinding cylinders: 2

Grinding cylinder material: Optional stainless steel, alumina, nylon, polyurethane

Motor power: 0.75KW

Speed regulation method: Frequency regulation

Transmission method: Synchronous pulley transmission

Grinding media: Agate, Zirconia,Stainless steel, Alumina

Main roll speed range: 60~450±10 (rpm)

Roller shaft length: 520mm

Adjustable spacing between roller shafts: 140mm

Equipment appearance size: 850*420* 260mm
