Dimension

L1220 x W780 x H900mm

Material

SUS 304, thickness 3mm

Glove opening

φ220mm，Hard aluminum alloy material, after anti-corrosion treatment

Gloves

PIERCAN made in USA; Gloves with a diameter of 8 inches and a thickness of 0.4mm are made of butyl rubber material

Window

1、The inclined design of the operating surface is made of 10mm safety tempered glass, and the front window is pasted with a special customized ultra strong sealing ring, adopting a front door opening structure

2、Can maintain a certain positive and negative pressure (-12mbar to 12mbar) during use

3、The box is equipped with energy-saving lighting and anti reflective materials, which provide soft light and prevent visual fatigue

4、One porous power supply terminal board is pre installed inside the box (power supply: 220V ± 10% 50Hz ± 10%)

5、Set up 5 standard KF-40 interfaces on the back panel of the box for easy access to liquids, gases, signals, etc

6、There are two layers of storage boards inside the box, which have the function of adjusting the height up and down

Support

Including casters, with a height of 914mm. Castors have functions such as leveling, moving, and fixing

Leakage rate

Hourly leakage rate of sealed box with controlled inert atmosphere ≤ 5XMaximum leakage standard ≤ 0.05vol%/h

Appearance

Cylindrical (304 stainless steel), connected to the glove box, using manual and automatic air supply control

Dimension

φ360mm*600mmRight side operation, using gas spring door opening method, with sliding tray inside the transition compartment

Tray

230 mm*595mm Can freely move left and right, with an extension depth of 361mm

Vacuum degree

≤-0.1MPa Vacuum pressure gaugeWika made in GERMAN

Appearance

Cylindrical (304 stainless steel), connected to glove box, controlled by manual valve

Dimension

φ155mm*320mm，Single opening handle pressing

Vacuum degree

≤-0.1MPa

Controling system

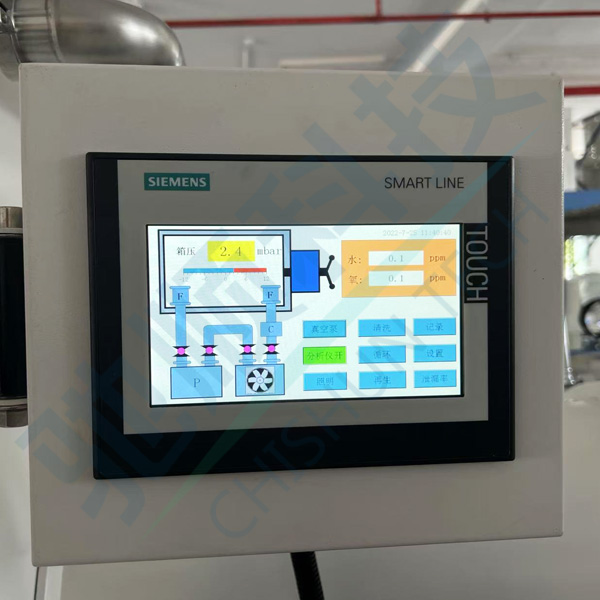

Including self diagnosis, power-off and self start characteristics, with pressure control and adaptive functions.Automatic control, cycle control, password protection, and vacuum chamber control are displayed on LCD.The control unit adopts a German SIEMENS touch screen, and the operation menu can be selected in Chinese/English

Pressure control

Control the pressure of the box and transition chamber at a certain set value

Foot pedal

Can control the pressure of the glove box and facilitate operation

Purification ability

O2、H2O < 1ppm

Adjustment device

Touch adjustment through PLC (heating, evacuation, purification, regeneration)No need for human monitoring throughout the entire process

Working gas

N2 or Ar(Gas circulation)

Circulating fan

German Elektror imported high-speed variable frequency fan, flow rate 0-80m3/hMicroprocessor controlPressure tested stainless steel device

Single purification column

5KG German BASF deoxygenation material, capable of deoxygenation of 60L5KG American UOP high-efficiency absorbent material, capable of removing 2kg of water

Purification valve

Fully automatic electrically operated valve with modular design

Filter

High efficiency filter using a 0.3 micron aperture filter screen that complies with HEPA standards

Regeneration system

Used for the reuse of purification systems to activate them;Regeneration requires a mixture of N2/H2 or Ar/H2 gases, with H2 accounting for 5-10%

Display System

The control unit adopts a German SIEMENS touch screen, and the operation menu is in Chinese/English

Vacuum system

Automatic pneumatic electroplating boardThe vacuum pump adopts DRV10 vacuum pump from the Chinese.Vacuum can be applied separately to the box and transition chamber, and individual control can be achieved at any time (customized project).
