HSVM High-speed Vibration Ball Mill is a high-efficiency small instrument used for the preparation of laboratory samples (small and trace amounts). This instrument has three-dimensional motion of rotation, oscillation, and vibration during grinding, with higher collision energy than other types of ball mills. It has small volume, light weight, and high efficiency. It can be used for material grinding, mixing, and mechanical alloying. A high-energy ball mill can be used to mill or mix various solids, suspensions, and pastes with different particle sizes and materials using both dry and wet methods.

Working principle

The HSWM high-energy ball mill adopts the principle of a three-dimensional∞shaped eccentric pendulum structure. When the motor runs at high speed, the tank body produces eccentric oscillation, driving the entire bracket to vibrate up and down, completing three-dimensional collaborative grinding including high-speed oscillation, strong impact, and vibration. The heat generation ratio is low, and the grinding energy input is 2-3 times higher than traditional planetary two-dimensional motion. The efficient mechanical energy greatly improves the grinding speed and efficiency, Reduce thermal effects. Enable the sample to achieve mechanical alloying (mechanical activation) in a very short period of time, forming high-energy grinding of nanocrystalline or amorphous materials, and grinding the sample powder to an extremely sufficient and uniform state.

Main features

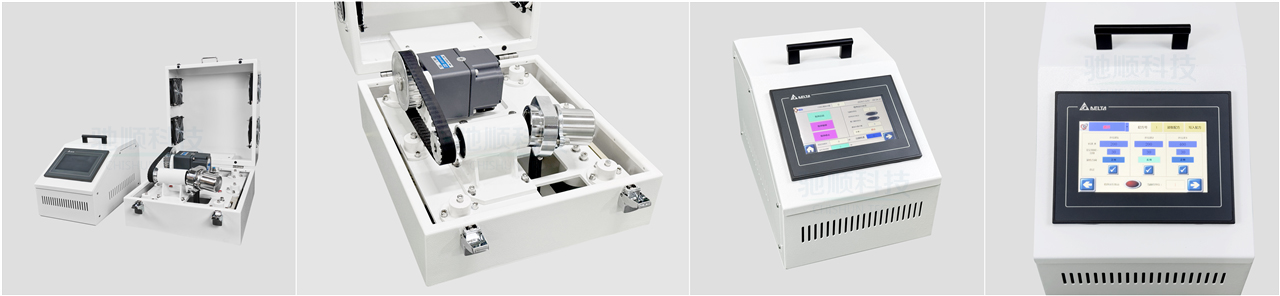

LCD touch screen menu display, user-friendly one click operation settings, real-time data recording throughout the process, fully automated program control, preset grinding time, and automatic completion of the grinding process without the need for manual operation; The grinding time is programmable, equipped with an efficient three-phase rotating motor, and the three-dimensional∞shape motion design makes ball milling fast and efficient; The automatic grinding chamber air cooling system enables real-time cooling during the operation of the ball mill, with a crushing fineness of up to micrometers.

Specifications
